COMBINED TINED CULTIVATORS
Gigant
The Gigant Dante Macchine grubber is used after ploughing, to break up the soil, with tractors up to 350 HP.
You can work using only the cultivator with two rows of leaves springs (Chisel 55×20+25), or in combination with a disc to obtain the best results in terms of clod crushing and stability.
We recommends always following the coupling recommendations and choosing a disc section narrow than the cultivator, so as to avoid lateral piles.
model | TRANSPORT WIDTH | TRANSPORT WIDTH | WEIGHT | HP | N. ANCHORS | N. discs |
|---|---|---|---|---|---|---|

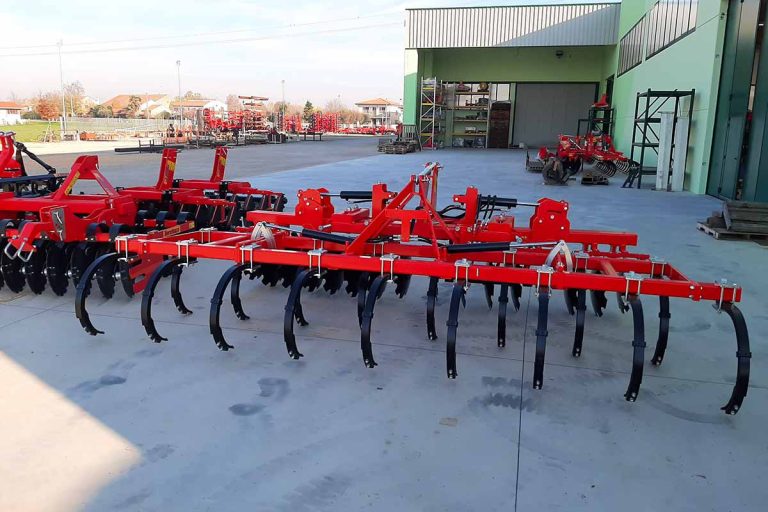

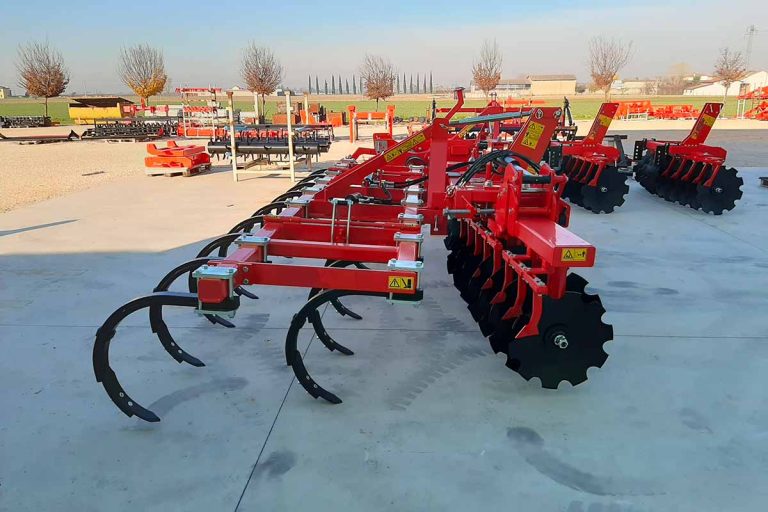

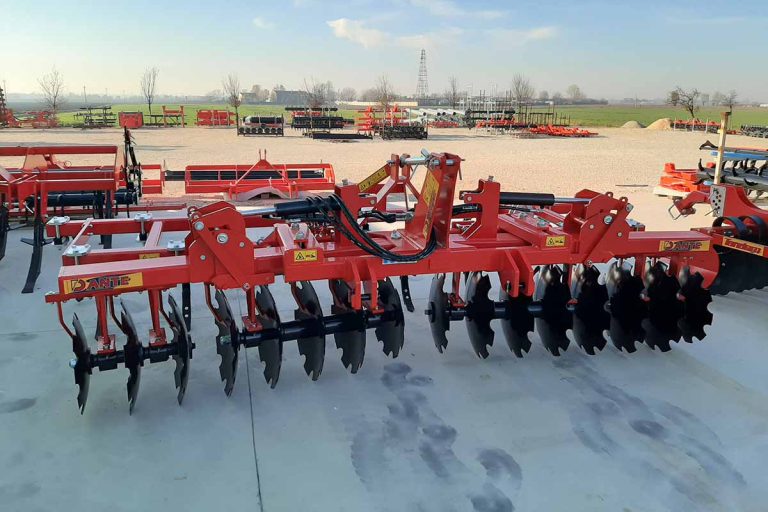

CC 45I (SDC40I + CB45I) | 4600 mm | 2500 mm | 2110 kg | 180-200 | 17 | 16 |

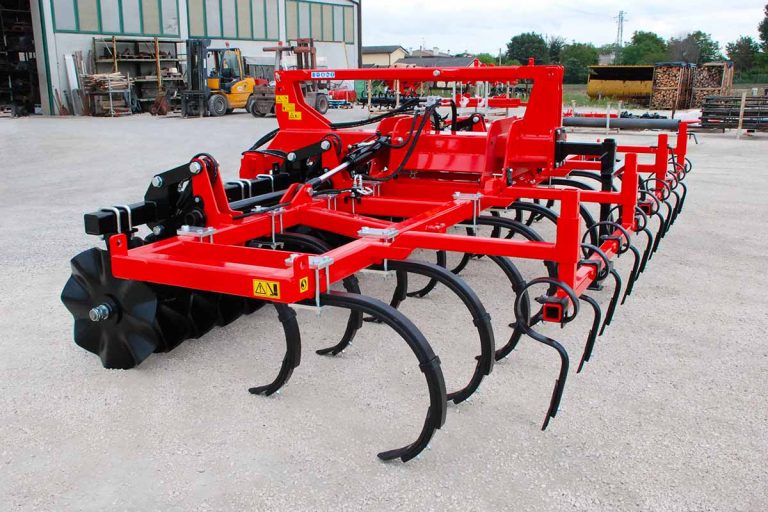

CC 50I (SDC45I + CB50I) | 5200 mm | 2500 mm | 2450 kg | 240-260 | 19 | 18 |

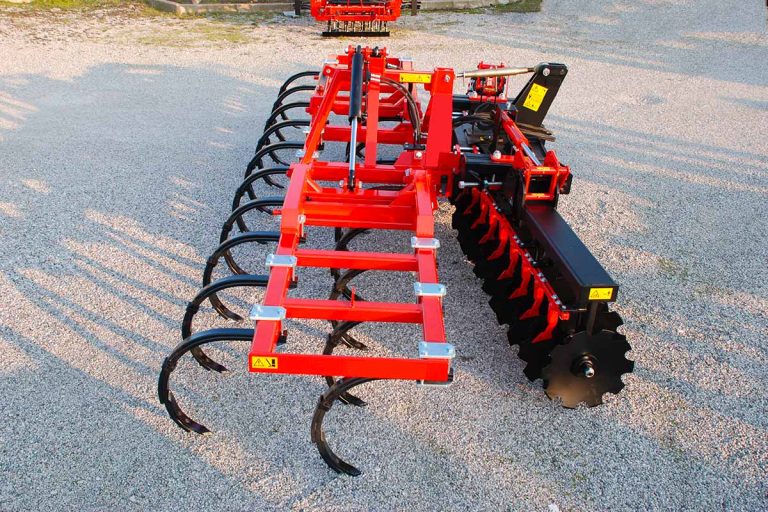

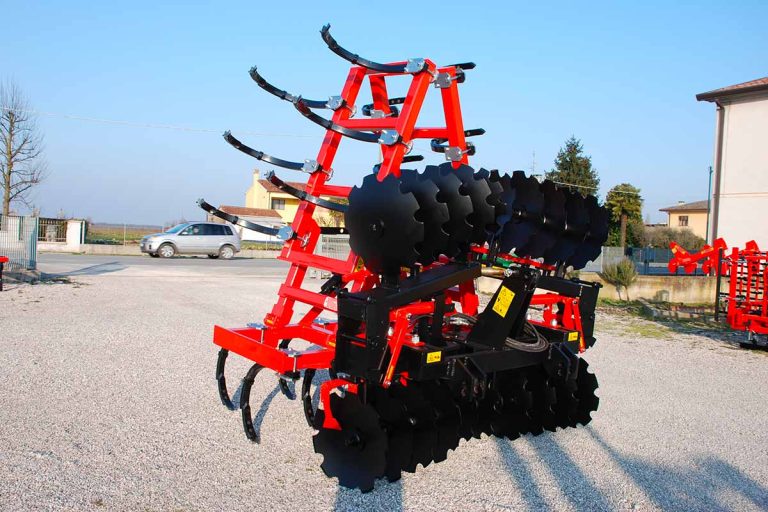

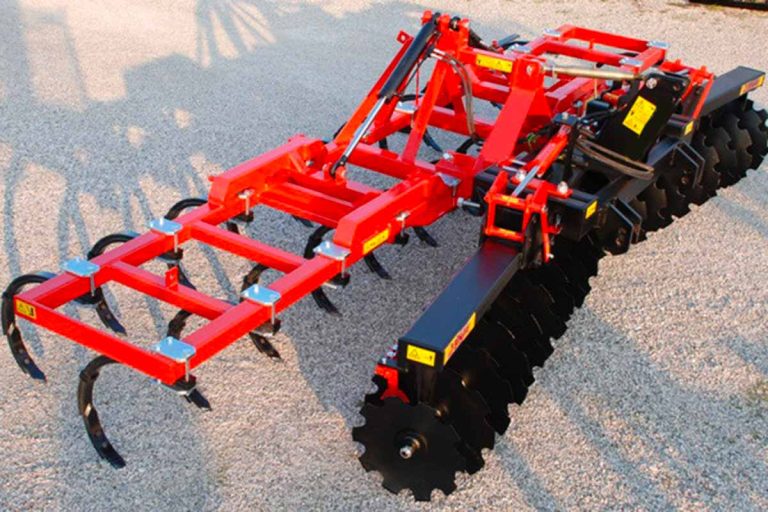

CC 55I (SDC50I + CB55I) | 5700 mm | 2500 mm | 2710 kg | 270-290 | 21 | 20 |

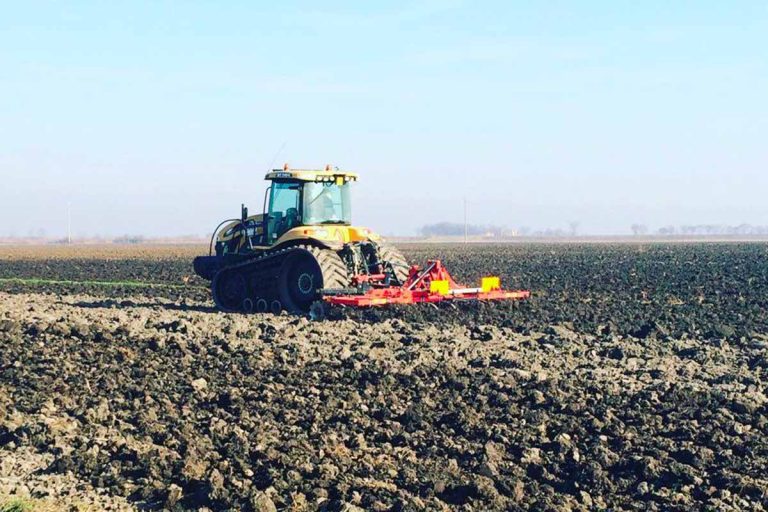

CC 60I (SDC55I +CB60I) | 6200 mm | 3000 mm | 3100 kg | 320-350 | 23 | 22 |

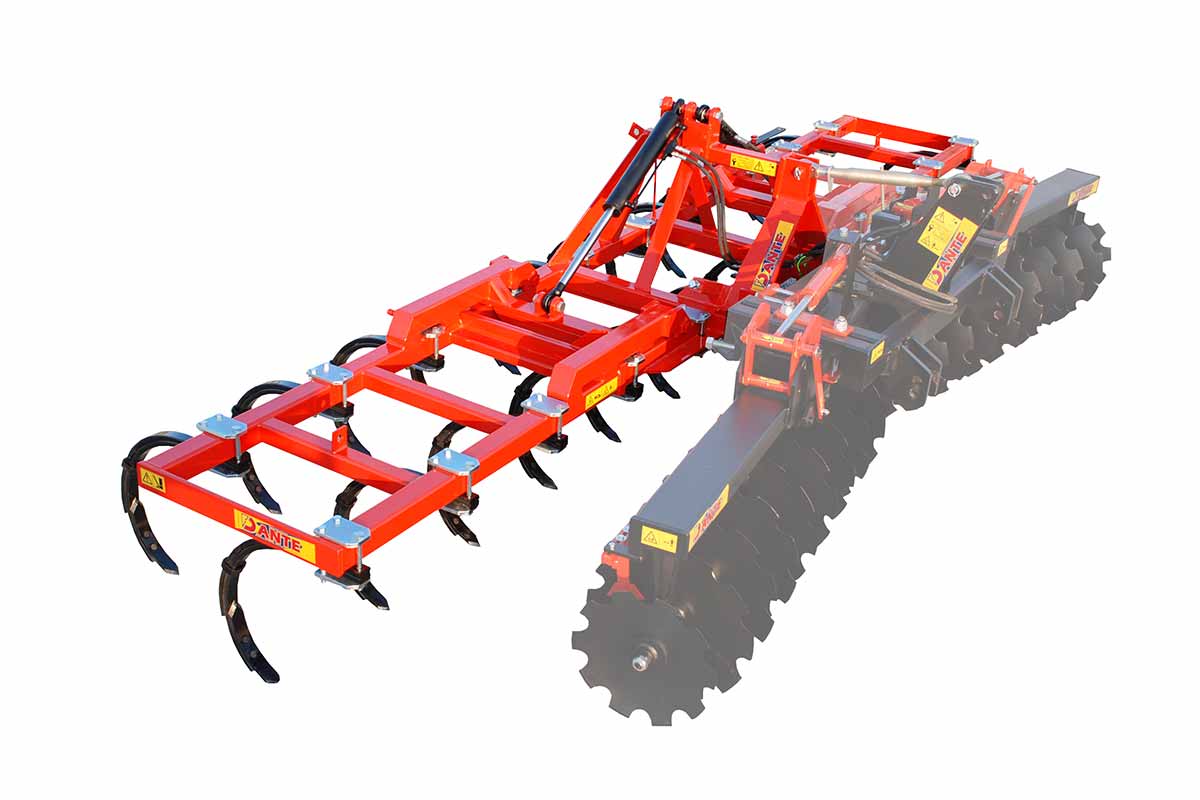

model | working width | transport width | weight | HP | N. ANCHORS | IMAGE |
|---|---|---|---|---|---|---|
CB 45I | 4600 mm | 2500 mm | 1100 kg | 210-230 | 17 |  |
CB 50I | 5200 mm | 2500 mm | 1350 kg | 240-260 | 19 | |
CB 55I | 5700 mm | 2500 mm | 1460 kg | 300-320 | 21 | |
CB 60I | 6200 mm | 3000 mm | 1650 kg | 350-400 | 23 |

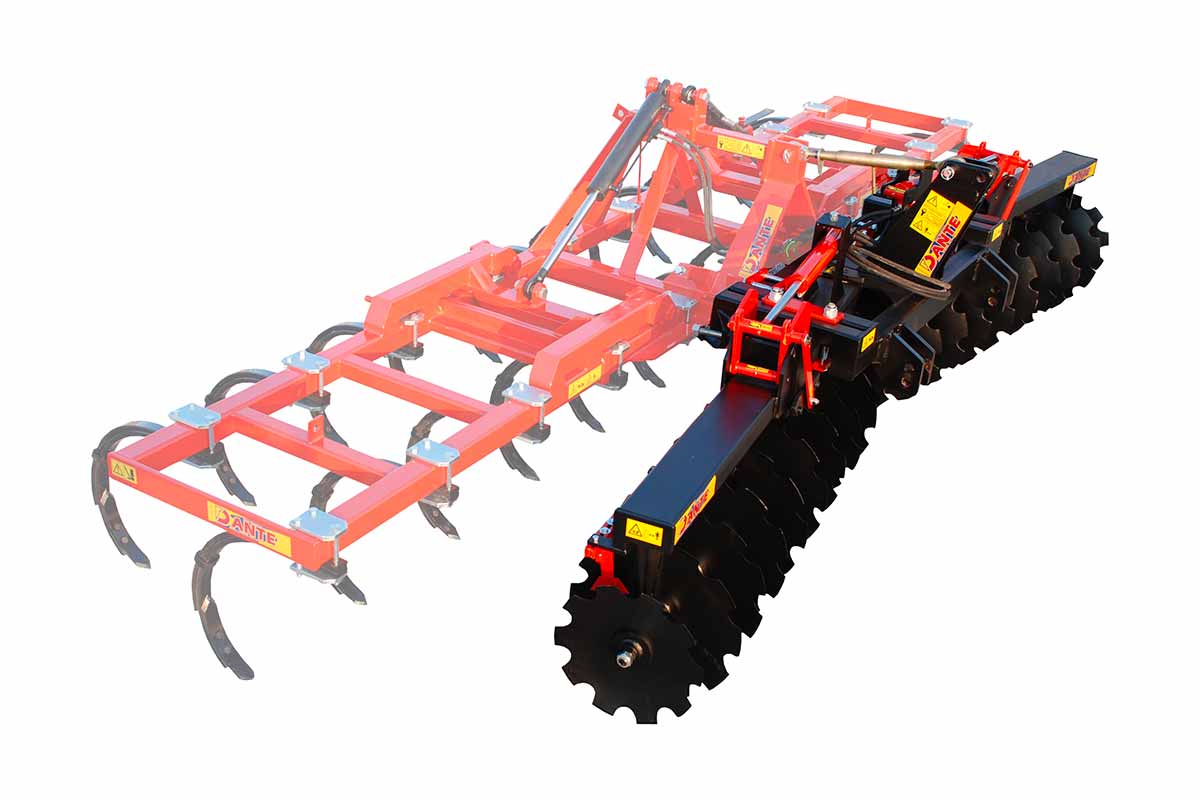

modeL | TRANSPORT WIDTH | WEIGHT | N. DISCS | N. SUPPORTS | IMAGE |
|---|---|---|---|---|---|
SDC 40I | 2500 mm | 1010 kg | 16 | 8 |  |
SDC 45I | 2500 mm | 1100 mm | 18 | 8 | |
SDC 50I | 2500 mm | 1250 mm | 20 | 8 | |
SDC 55I | 2500 mm | 1450 mm | 22 | 10 |
GIGANT COMBINED CULTIVATORS: REQUEST INFORMATION
If you need further information about cultivators or other Dante Macchine products, contact us by filling out the form. You will be contacted by our staff.
