Trailed seedbed cultivators
PLANO SP

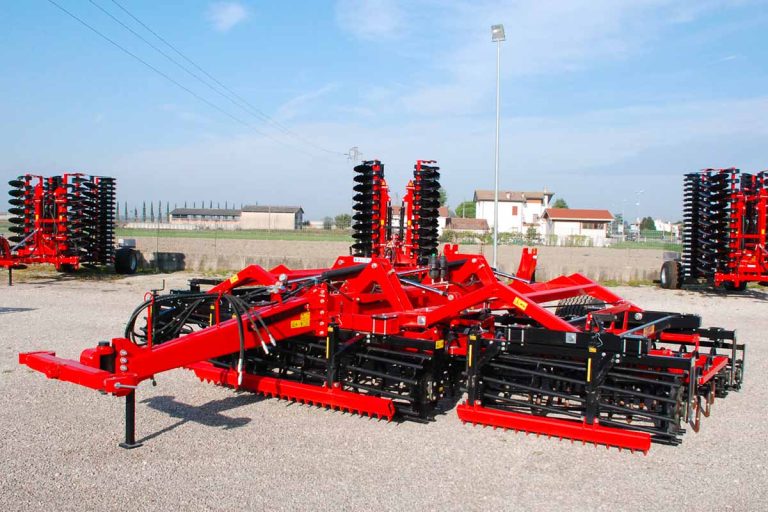

The Plano SP model is our version of a heavy-duty seedbed cultivator.
The machine is characterized by a central frame and two extensions.
The balance of the structure is ensured by an integrated hydraulic system that enables you to equally distribut the weight all over the machine width and, in the meantime, it guarantees adaptability to the soil.
This conformation allows the seedbed cultivators to operate on different surfaces and even in difficult conditions.
model | working width | transport width | HP | N. flex springs | KG | Image |
|---|---|---|---|---|---|---|
PLANO SP6 with cage roller | 6000 mm | 2500 mm | 210-260 | 100 | 4700 |  |
PLANO SP75 with cage roller | 7500 mm | 2500 mm | 270-300 | 120 | 5000 |
model | working width | transport width | HP | N. flex springs | KG | IMAGE |
|---|---|---|---|---|---|---|
PLANO SP6 with crosskill roller | 6000 mm | 2500 mm | 210-260 | 100 | 5200 |  |
PLANO SP75 with crosskill roller | 7500 mm | 2500 mm | 270-300 | 120 | 5500 |
PLANO SP seedbed cultivators: the optional
Autumn kit

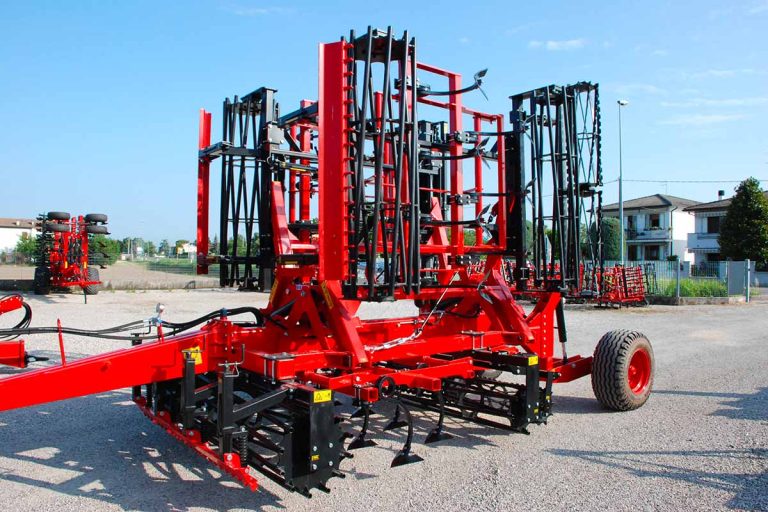

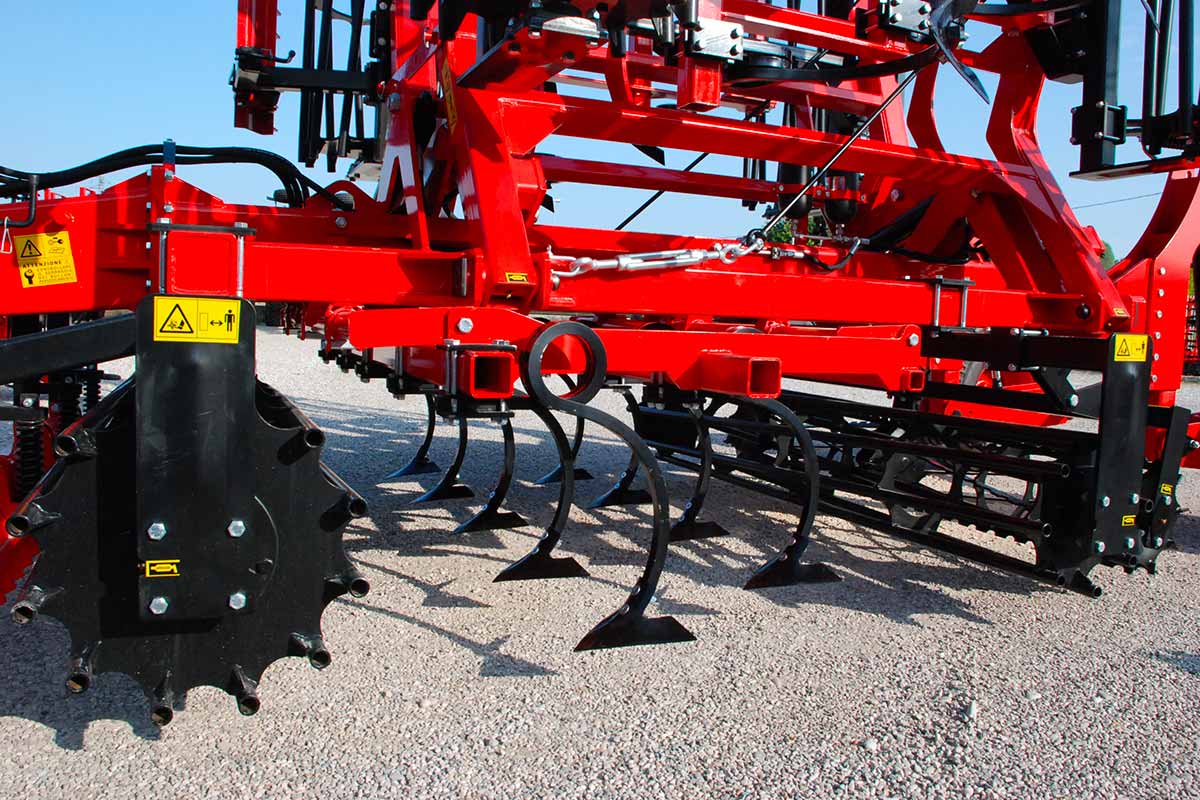

In the SP vibrocultivator it is possible to replace the tine holder frames with other frames, on which to mount two rows of double coil square springs with sweep share, to make the machine suitable for autumn cultivation.
Crosskill rollers

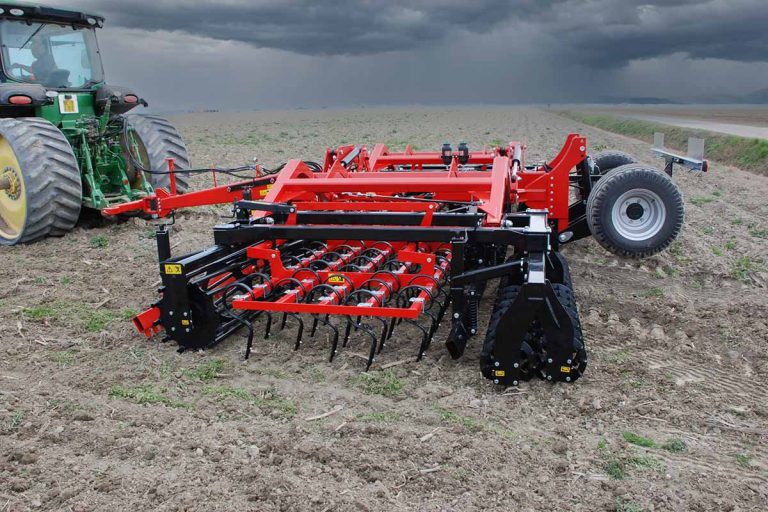

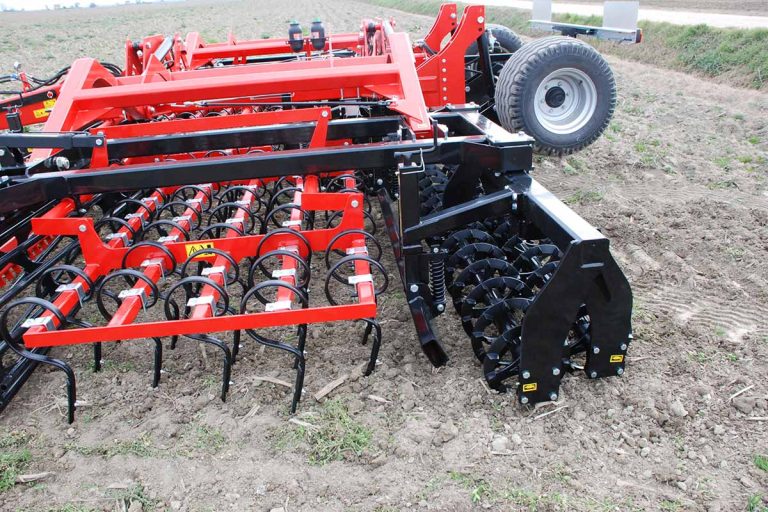

On request, as an alternative to the cage roller and the rear tined roller, the seedbed cultivator can be equipped with a row of crosskill rollers made of high quality cast iron with a diameter of 350 mm, recommended for very dry soils for crushing clods and creating the perfect soil structure. Crosskill rollers can also be used on soft soils to recompact and preserve any moisture present.
They should not be used in the presence of stones.
