Mounted seedbed cultivators
PLANO L and L-DR
The structure of the PLANO L and L-DR seedbed cultivators and the combination of various working tools guarantees intense leveling of the soil, correct mixing and optimal chopping of the clods.
The position of the various components and the shape of the tines are designed to work the soil in the best possible way and obtain a perfect seedbed with a single pass.
This results in sustainable working from an economic and environmental point of view.
Our PLANO L and L-DR mounted preparators from 3.5 m to 5 m are recommended for powers from 70 to 160 HP.
Mounted PLANO L and L-DR Plano seedbed cultivators: the characteristics
- Tined leveling bar
- 5 rows of 32x10 flex springs with straight share
Distance between tines: 5 cm - 1 tined roller Ø 300 mm

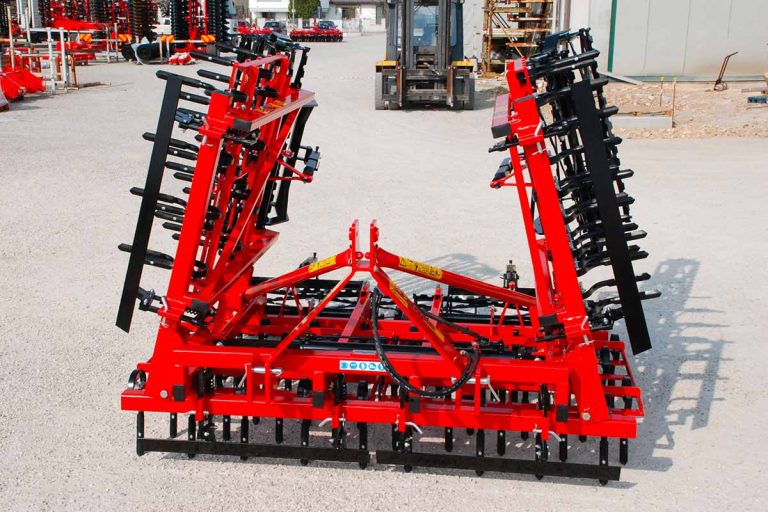

In the L-DR models there are two tined roller instead only one. - Folding frame
model | WORKING WIDTH | TRANSPORT WIDTH | HP | N. FLEX SPRINGS | KG |
|---|---|---|---|---|---|
PLANO L35 | 3500 mm | 2500 mm | 70-80 | 60 | 740 |
PLANO L40 | 4000 mm | 2500 mm | 90-100 | 70 | 930 |
PLANO L45 | 4500 mm | 2500 mm | 110-130 | 80 | 980 |
PLANO L50 | 5000 mm | 2500 mm | 140-160 | 90 | 1100 |
model | WORKING WIDTH | TRANSPORT WIDTH | HP | N. FLEX SPRINGS | KG |
|---|---|---|---|---|---|
PLANO L35-DR | 3500 mm | 2500 mm | 80-90 | 60 | 840 |
PLANO L40-DR | 4000 mm | 2500 mm | 90-100 | 70 | 1080 |
PLANO L45-DR | 4500 mm | 2500 mm | 110-130 | 80 | 1150 |
PLANO L50-DR | 5000 mm | 2500 mm | 140-160 | 90 | 1420 |
