Disc harrows

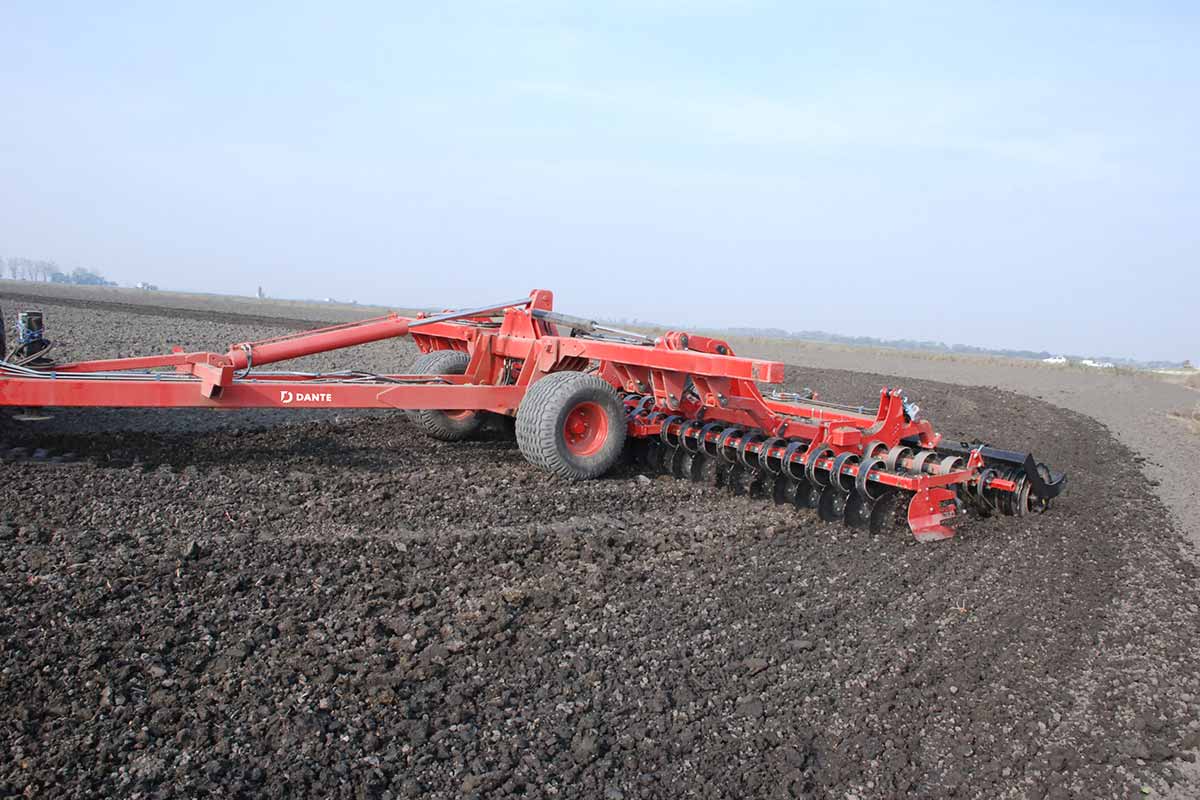

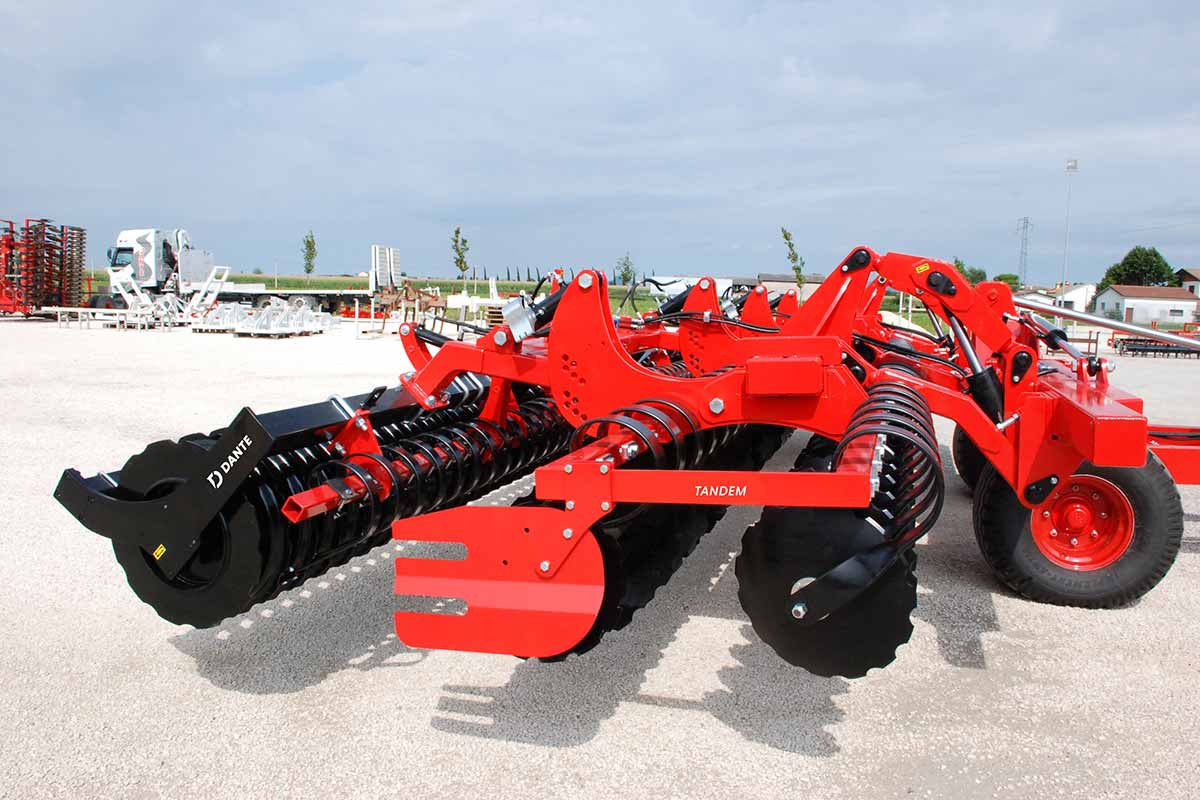

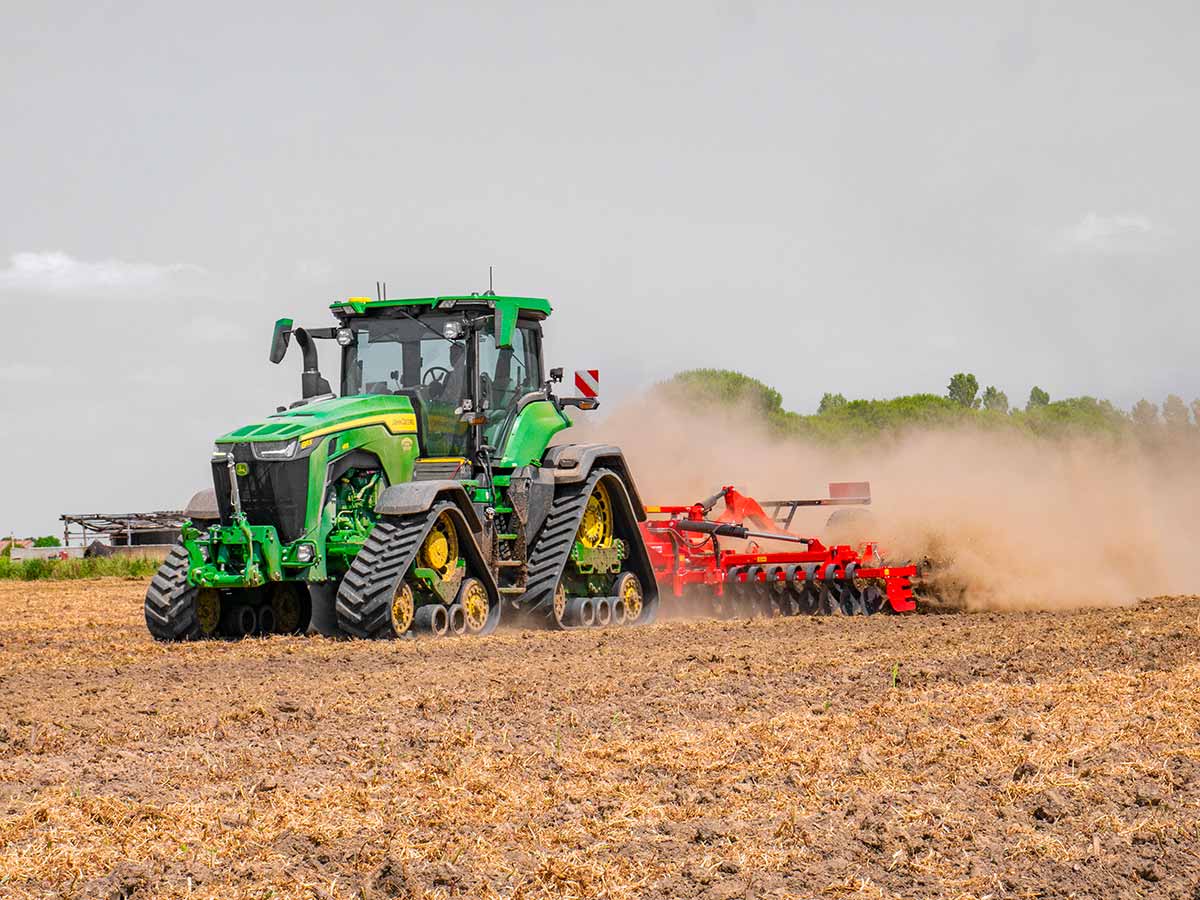

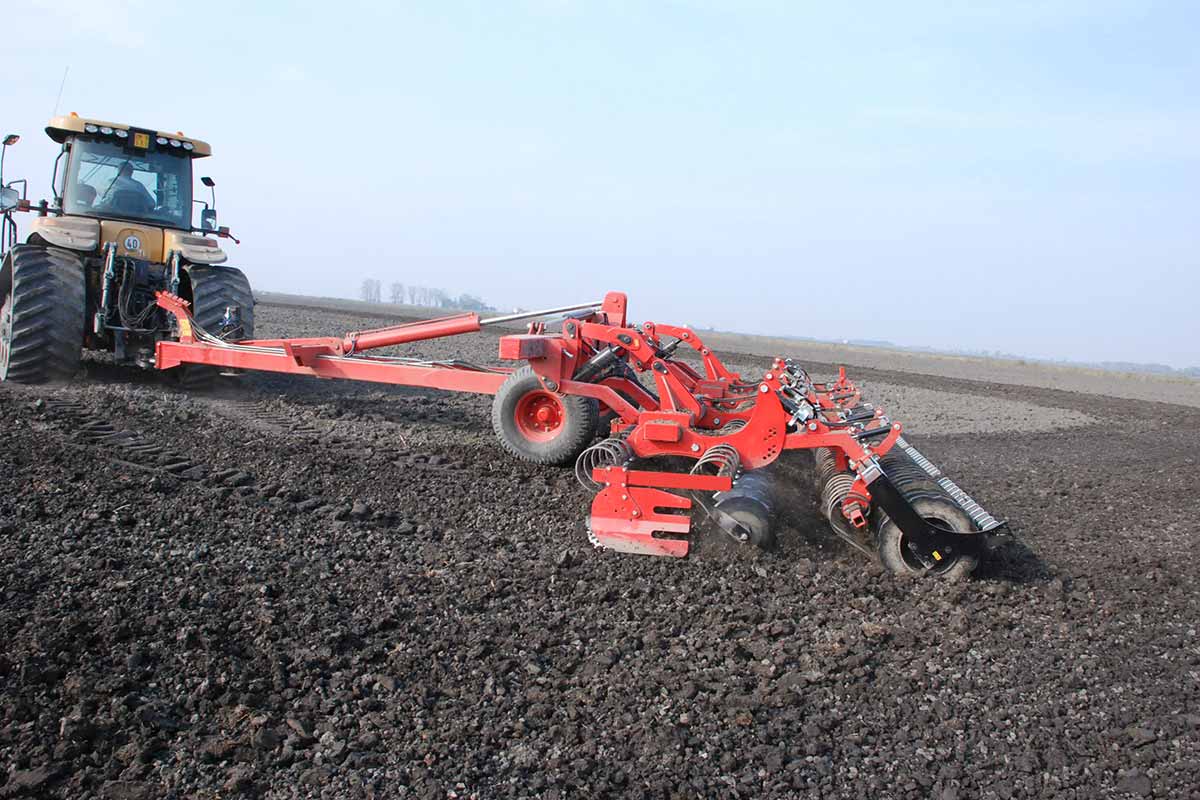

Tandem SP
Tandem SP disc harrows are project to exploit harvest residues to the best, so that it can become a natural fertilizer.

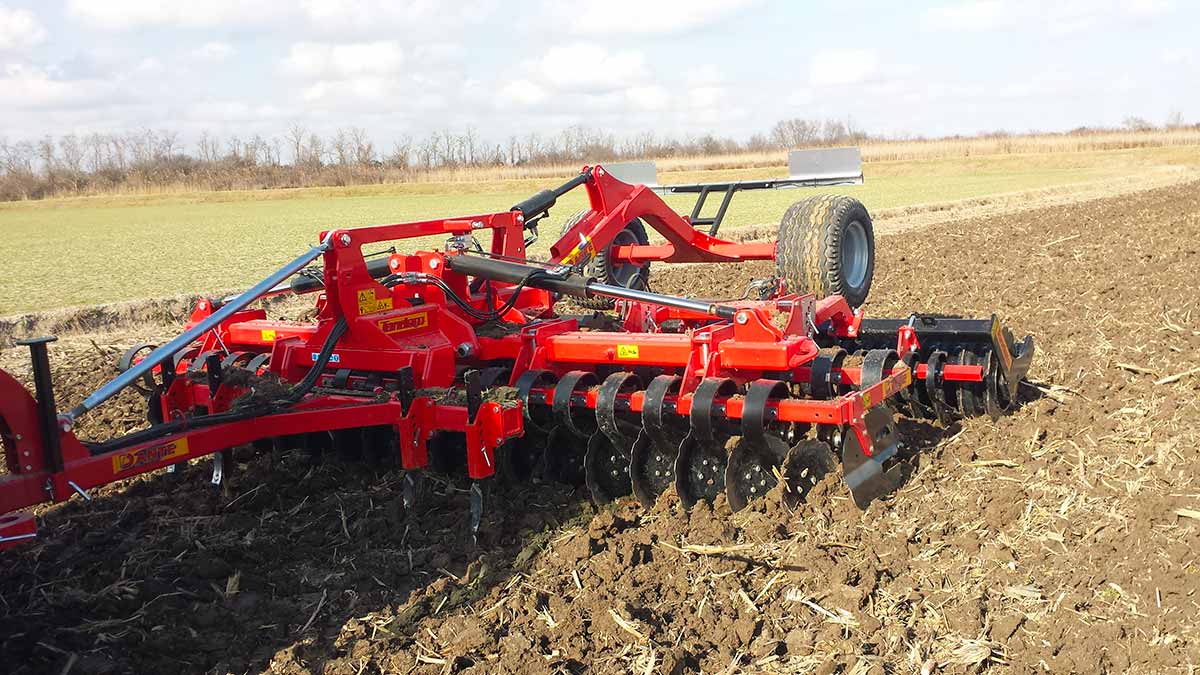

The combination of its tools allows you to work the soil intensively, at a minimum depth. The discs are mounted on independent spring supports.
Characteristics:
- Discs: Ø 510 mm
- Springs: 100x13 mm
- Working depth: 3-12 cm
- Working width: from 3 to 8 meters
Right for:
- Preparation of the seedbed
- Work on residues and covers
- Light tillage
Matching tools:

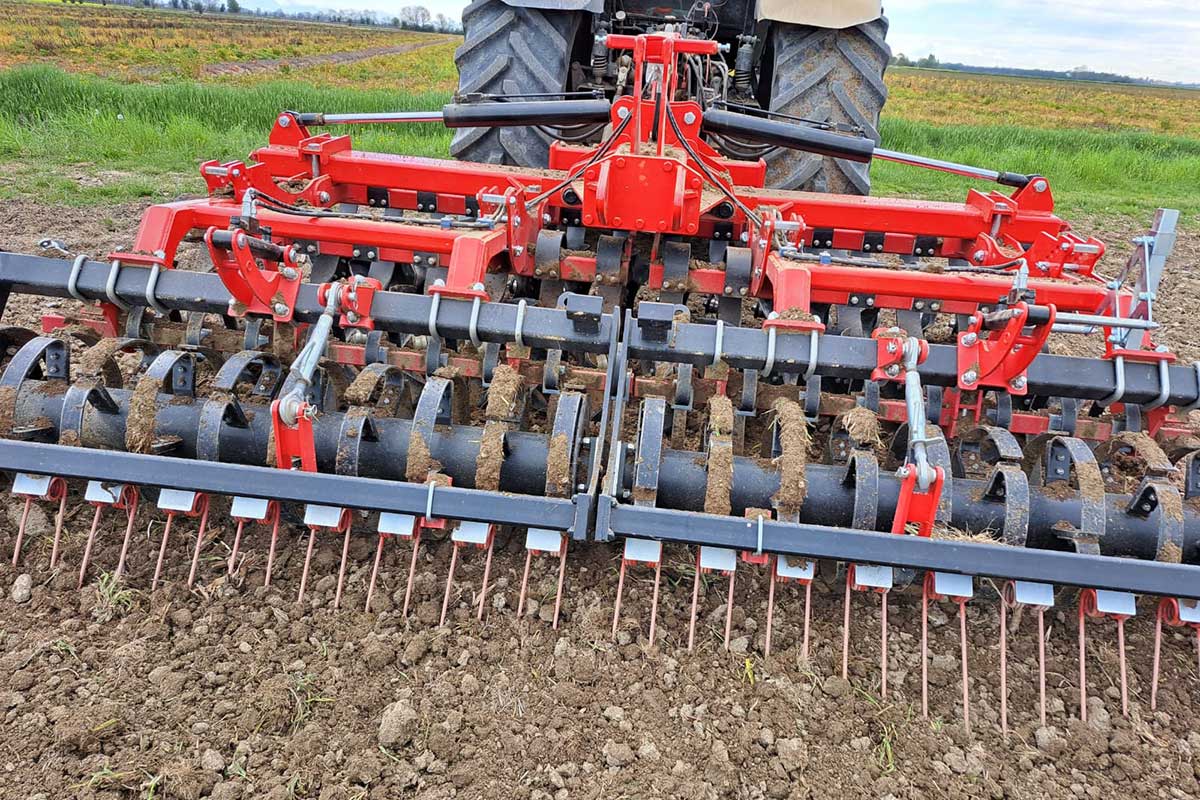

- Knife paker roller
- Cage roller
- Full-flex roller
MOUNTED MACHINES
model | working width | transport width | HP | N. DISCs | knife paker roller dia. 600 mm | cage roller dia. 400 mm | full-flex dia. 520 mm |
|---|---|---|---|---|---|---|---|
TANDEM 300 | 3000 mm | 3000 mm | 100-110 | 22 | 1840 kg | 1480 kg | 1590 kg |
TANDEM 400 | 4000 mm | 2500 mm | 180-210 | 30 | 2870 kg | 2340 kg | 2620 kg |

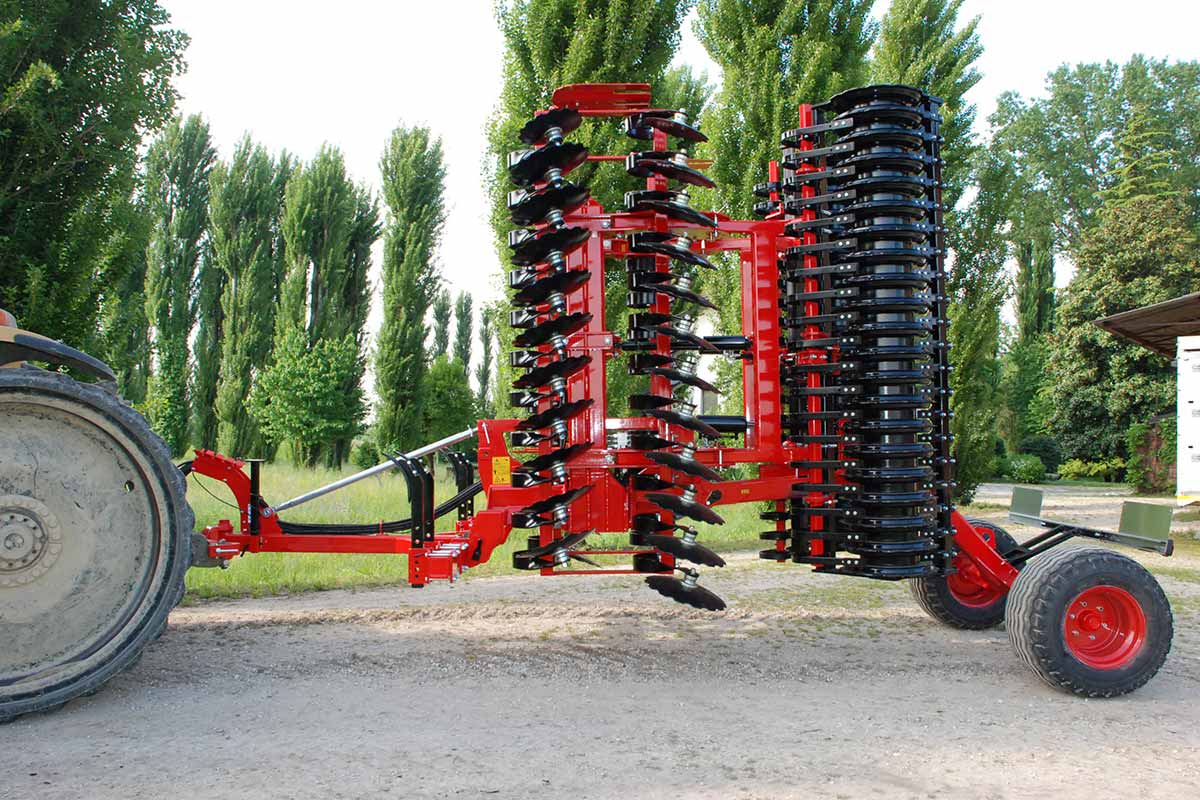

TRAILED MACHINES
model | working width | transport width | HP | N. DISCs | knife paker roller dia. 600 mm | cage roller dia. 500 mm | full-flex roller dia. 520 mm |
|---|---|---|---|---|---|---|---|
TANDEM 400 SP | 4000 mm | 2500 mm | 130-150 | 30 | 3600 kg | 3000 kg | 3270 kg |
TANDEM 500 SP | 5000 mm | 2500 mm | 170-220 | 38 | 4300 kg | 3500 kg | 3890 kg |
TANDEM 600 SP | 6000 mm | 2500 mm | 250-300 | 46 | 4800 kg | 3900 kg | 4300 kg |
model | working width | transport width | HP | N. DISCs | knife paker roller dia. 600 mm | cage roller dia. 500 mm | full-flex roller dia. 520 mm |
|---|---|---|---|---|---|---|---|

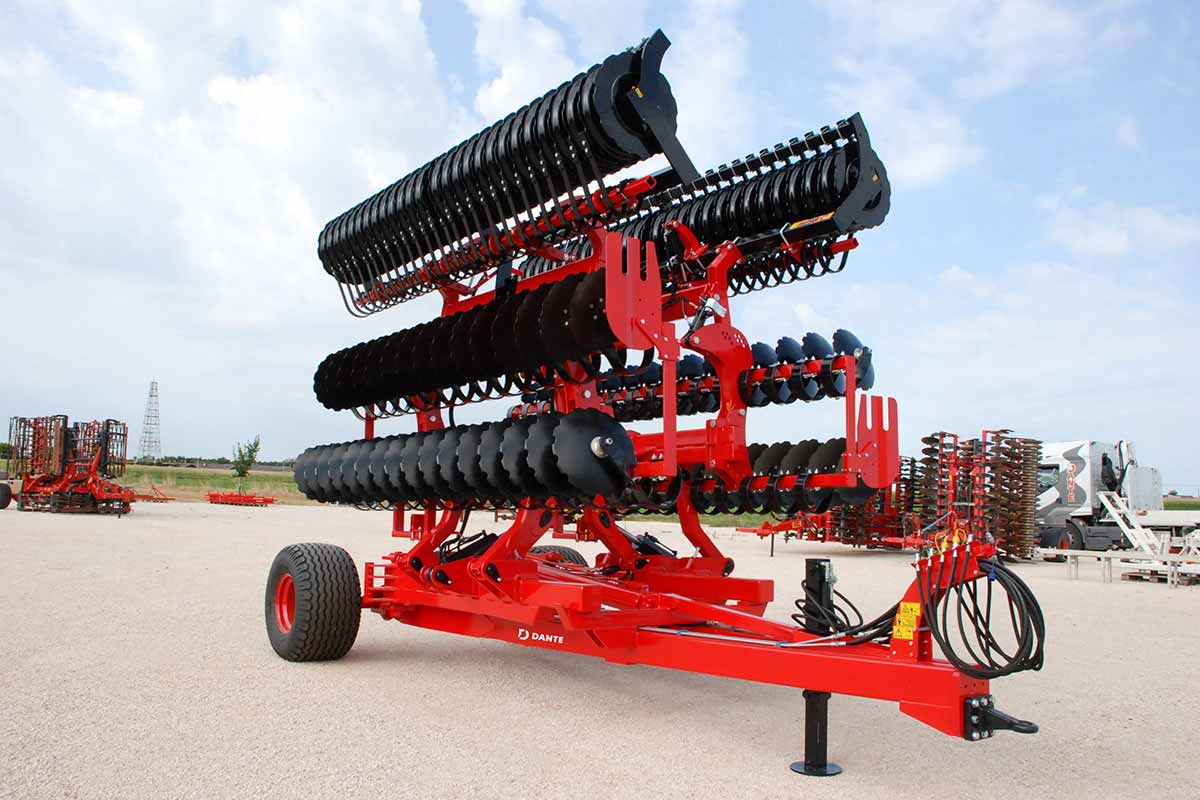

TANDEM 800 SP | 8000 mm | 3000 mm | 450-500 | 62 | 8000 kg | 6400 kg | _ |
