Depth subsoilers Dante Macchine
R 80
Depth subsoilers, or scarifiers, are machines used to drain the soil. Our experience has led us to develop innovative depth subsoilers, which stand out, in particular, for the robustness of the structure, both in terms of the frame and the anchors. The anchors are produced from a steel with a high elastic limit, suitable for the heavy work to which they are subjected.
Our subsoilers, with a height under the frame of 100 cm, are equipped with rear drainage spheres that create channels for the drainage of land subject to asphyxiation.The vertical knife is subjected to hardening treatments: placed above the anchors, it protects them from usury. The anchors are equipped with safety devices that allow them to rotate backwards after impact with the obstacle.
Depth subsoiler with 2nd or 3rd category three-point hitch
On request, couple of wheels diameter 500×200.
model | working width | Weight | HP | N. ANCHORS | Working depth |
|---|---|---|---|---|---|

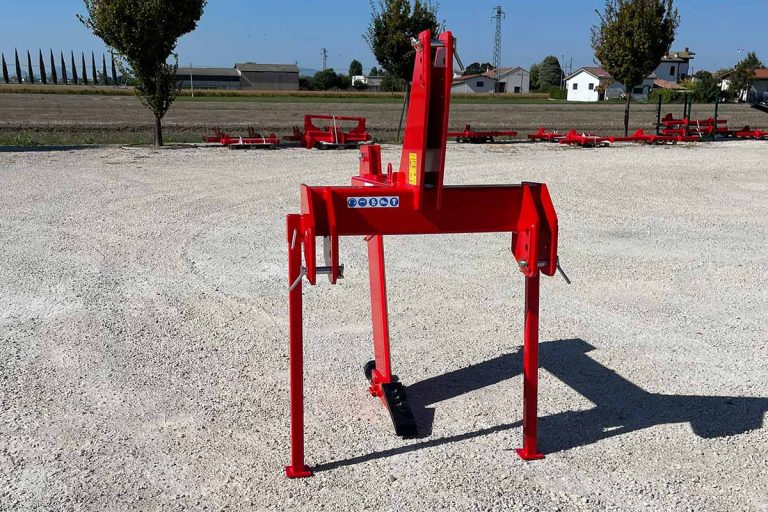

R 80 | -- | 370 kg | 100-130 | 1 | Max 80 cm |

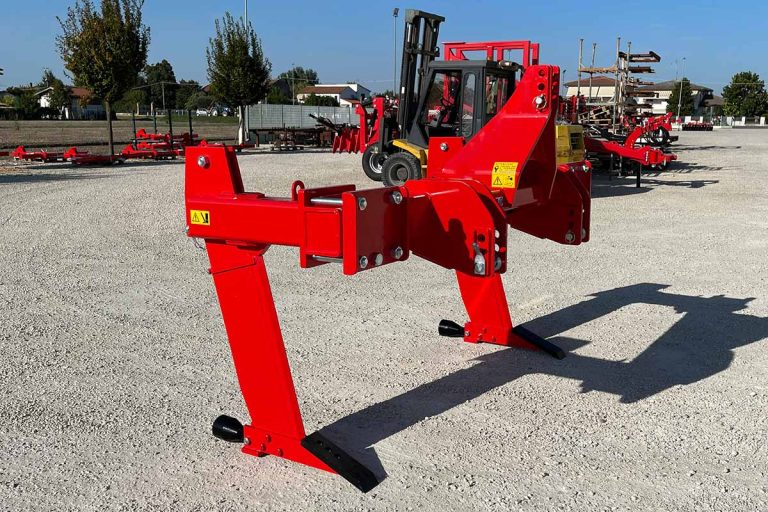

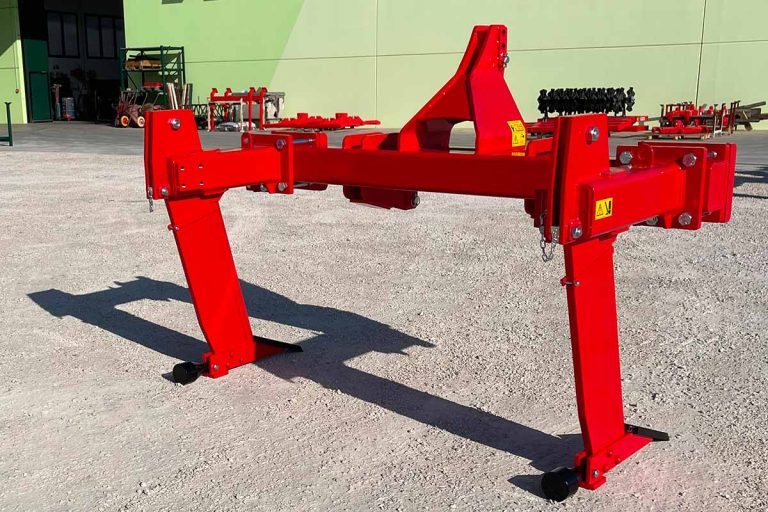

R 80/2 | 2500 mm | 830 kg | 200-250 | 2 | Max 80 cm |

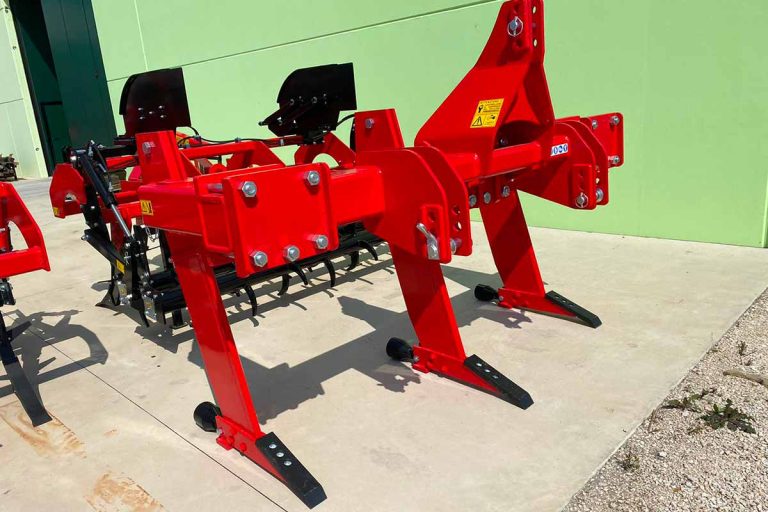

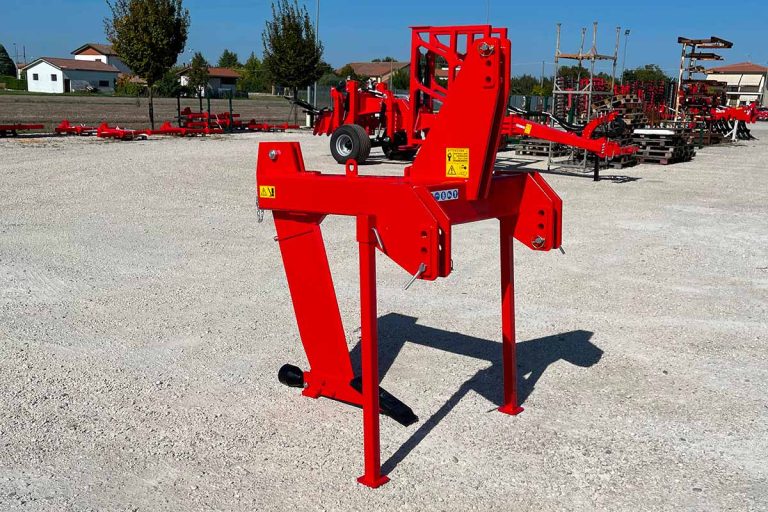

R 80/3 | 2500 mm | 1060 kg | 300-350 | 3 | Max 80 cm |
Depth subsoiler with 4th category three-point hitch or trapeze
The depth subsoilers with 4th category three-point hitch or trapeze have 4 support wheels as standard equipment.
model | working width | Weight | HP | N. ANCHORS | Working depth |
|---|---|---|---|---|---|

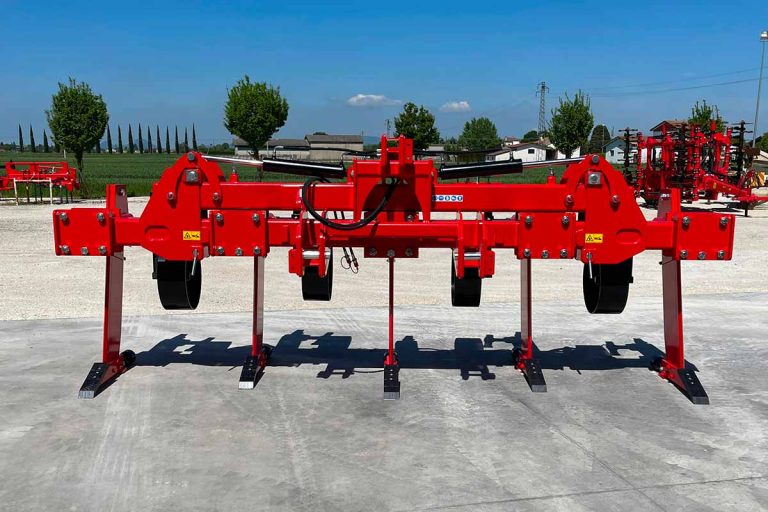

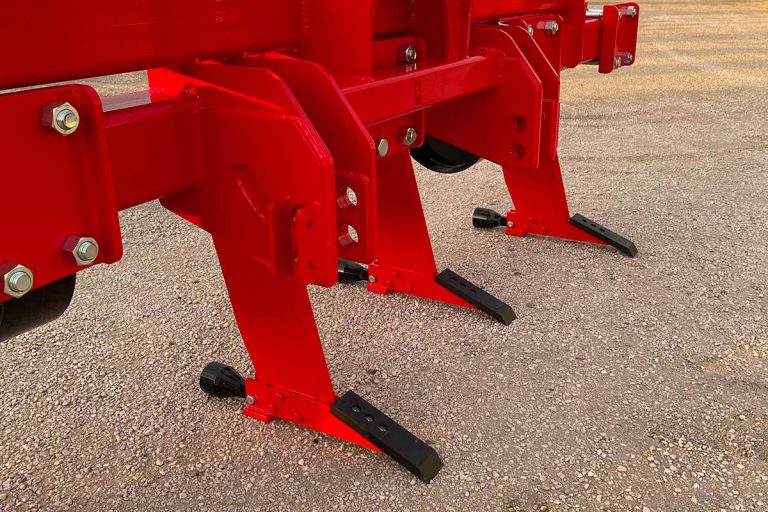

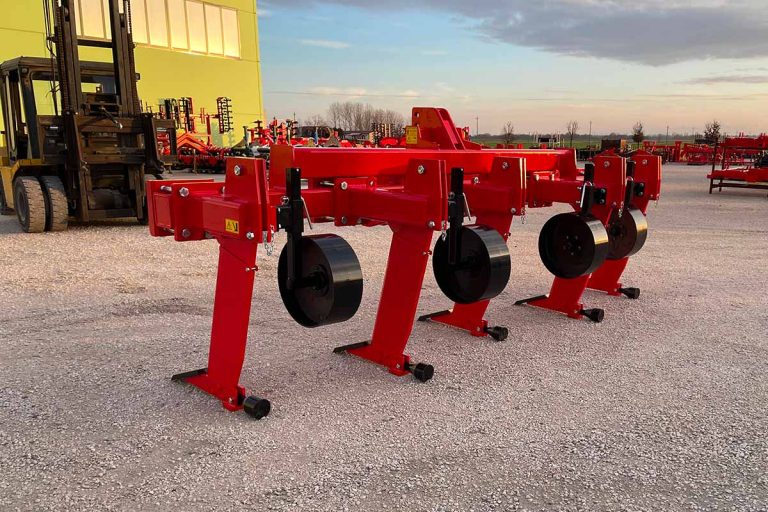

R 80/5 | 4600 mm | 2220 kg | 400-500 | 5 | Max 80 cm |

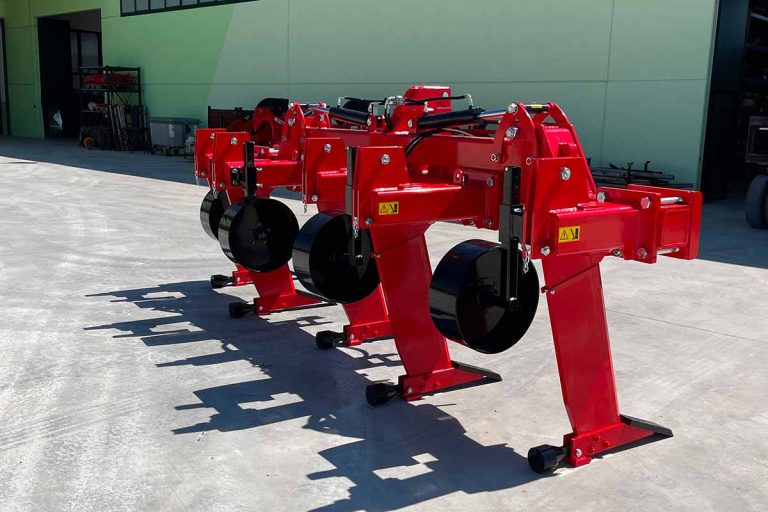

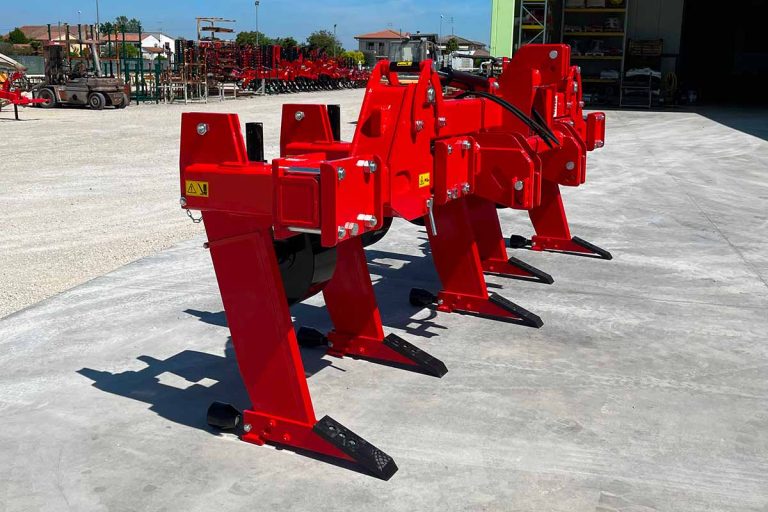

R 80/5 i (folding frame) | 4600 mm | 2480 kg | 400-500 | 5 | Max 80 cm |
R80 depth subsoilers: request information
If you need further information on depth subsoilers or other Dante Macchine products, contact us by filling out the form. You will be contacted by our staff.
